Warping Creel Model : CRT
| 1 | Pitch Distance: Horizontal x Vertical | 180X180 | 240X240 | 280X280 | 320X320 |
| 2 | No. of Tiers | 10 | 8 | 8 | 6 |
| 3 | No. of Cones in each Module | 160 | 96 | 96 | 72 |
| 4 | Range of ends | 160-960 | 96-960 | 96-960 | 72-720 |
| 5 | Creel Height | 2100 mm | 2200 mm | 2600 mm | 2300 mm |
| 6 | Module Width | 4500 mm | 4500 mm | 4500 mm | 4500 mm |
Salient Features
- M.S Fabricated, Very sturdy, Vibration free, Powder Coated Structure.
- Quick positioning of new cones by turning modular frame to 180 degree with locking facility.
- Re-creeling is possible during warping operation.

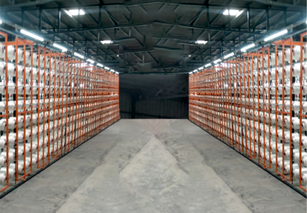

- Sufficient central passage to facilitate easy access to yarn breaks on either side quickly.

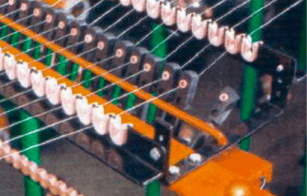

- Stop motion is equipped with Optical through beam sensor for faster response during yarn breaks.
- Separate indicators on each row enables quick identification of particular yarn breakage.

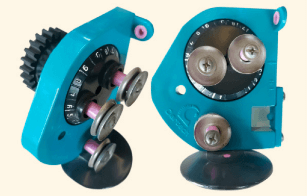

- 3 post Ratchet tensioner unit with stainless steel discs, Ceramic eyelets and capable of adjusting yarn tension at desired level either manually or centrally. This will ensure uniform tension across all ends.
