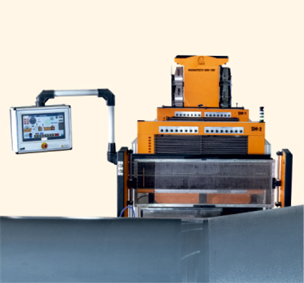

Mother Yarn Split Warping Machine
Split Sectional Warping Model : MONOTECH
| MECHANICAL SPECIFICATION | |
|---|---|
| WORKING WIDTH | 2800 - 3600 MM |
| CONE DEGREE | 8.5 |
| DRUM DIA | 1000 MM (3.14 MTR) |
| WAXING DEVICE | WITH VFD |
| LEASING OSCILLATION | YES |
| BEAMING | SEPARATE |
| BEAMING TENSION | AUTO |
| SERVO U/C | YES |
| BLOWER | YES |
| FUTTER ROLLER | YES |
| STATIC DEVICE ON U/C | YES |
| STATIC DEVICE ON LEASING | YES |
| HEAVY STRUCTURE | YES |
| HOLLOW SHAFT DISC BRAKE | YES |
| ELECTRICAL SPECIFICATION | |
|---|---|
| WARPING MOTOR | 7 KW SERVO |
| BEAMING MOTOR | 22 KW |
| TENSION ROLLER MOTOR | 5 KW SERVO |
| TRAVERSE MOTOR | 2.0 KW SERVO |
| U/C MOTOR | 1.0 KW SERVO |
| STATIC DEVICE | HIGH VOLTAGE |
| WARPING SPEED | 500 MPM |
| BEAMING SPEED | 150 MPM |
| DISPLAY | HIGH RESOLUTION HMI DISPLAY FOR WARPING-15 INCH AND BEAMING-7 INCH |
| REPORT | ALL BEAMING DATA CAN BE PRINTED OR CAN BE COPIED USING PENDRIVE |
| ALARM | A SMART ALARM SYSTEM AND WITH ALARM HISTORY TO VERIFY ANYTIME. |
Salient Features
- Both Tension Roller Controlled by Servo System

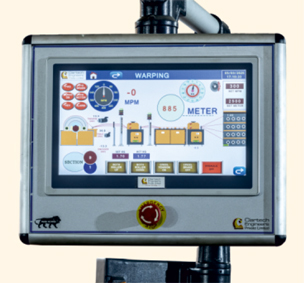

- Higher Graphical Display 15 Inch for Warping Operation and 7 Inch for Beaming Operation
- Yarn Tension Control Through Load Cell With Warping LINE Speed
- Beaming Tension Control by Auto Pneumatic System
- Both Stop Motion Working With Higher Sensing Devices
- Warping LINE Speed Control by Servo Motor

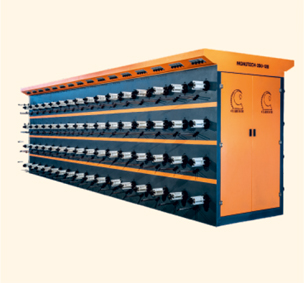

- Unwinding Creel for Mono Mother Yarn
- Creel Spindle Ends :-120/128/136 or Higher Side on Request of Customer
- Individual Motor for Each Spindle With Yarn Tension
