Salient Features

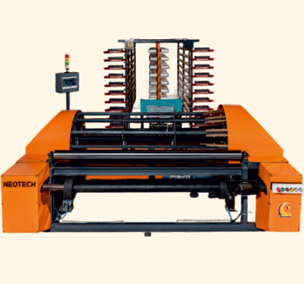

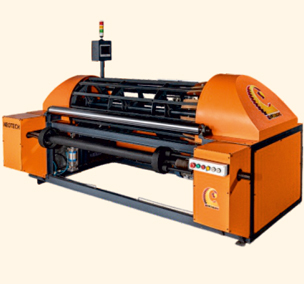

Machine

• Excellent, Sturdy & Ergonomic design with integral beaming unit.
• Fix cone with dynamically balanced tubular metallic drum
• PLC for electronic & mechanical function controlling to ensure accurate length of warps.
• Auto home position & manual position of warp table.
• Pneumatic brakes on both sides with auto braking during power failure.

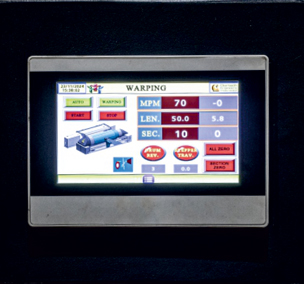

• Lost end memory & other intelligent operational features with high resolution colour touch screen display.
• Single motor with gear box for both warping & beaming and ensure constant line speed.
• Flat reed attachment with angular adjustment.

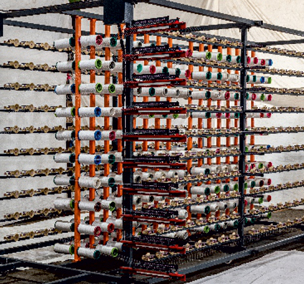

Creel

• M.S Fabricated, very sturdy, Vibration free structure with eyelet stand which is movable during section advancement while warping.
• Sufcient central passage to facilitate easy access to yarn breaks on either side quickly.
• Stop motion is equipped with Optical through beam sensor for faster response during yarn breaks.
• Separate indicators on each row enables quick identication of particular yarn breakage.
• 3 post tensioner unit with stainless steel discs, Ceramic eyelets and effective protective cover.
