Split Direct Warping Model : Evatech
| Description | Specification |
|---|---|
| Mother Yarn | Polyster & Nylon |
| Beam Size | Ø 535 × 1066 Mm Ø 762 X 535 Mm Ø 535 × 1066 Mm Ø 762 × 1066 Mm |
| Warping Speed | Max 800 Mtr/Min |
| Bobbin Size | Ø 90 X 380 Mm Ø 120 X 420 Mm Ø 125 X 420 Mm |
| Spindle Range | 48-96 Nos. |
Salient Features

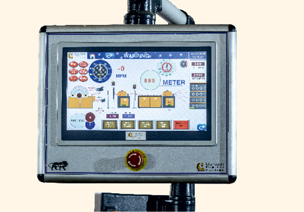

- Complete asynchronous servo control system.
- Yarn tension Control through load cell & precisely controlled by close-loop PLC system.
- Stop motion working with higher sensing devices.

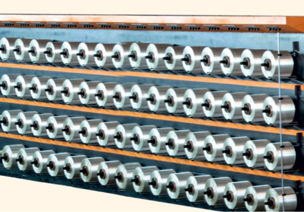

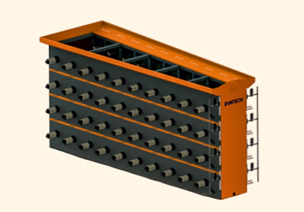

- Unwinding creel for mono mother yarn with individual motors.
- Very Efcient tension roller assembly to ensure uniform yarn tension.
